Optical distortion models¶
Author: Yannick Copin y.copin@ipnl.in2p3.fr
Abstract: the spectrogrism.distortion
module implements
different distortion models, including the Brown-Conrady distortion
model.
In [1]:
# Technical stuff related to the Jupyter notebook
%load_ext autoreload
%autoreload 2
%matplotlib inline
#import mpld3
#mpld3.enable_notebook()
import warnings
warnings.filterwarnings("ignore")
Geometrical distortions¶
In [2]:
import numpy as N
from spectrogrism.distortion import GeometricDistortion
The GeometricDistortion
class implements the Brown-Conrady
(achromatic) distortion model:
\[\begin{split}\begin{align}
x_d &= x_u \times (1 + K_1 r^2 + K_2 r^4 + \ldots) \\
&+ \left(P_2(r^2 + 2x_u^2) + 2P_1 x_u y_u\right)
(1 + P_3 r^2 + P_4 r^4 + \ldots) \\
y_d &= y_u \times (1 + K_1r^2 + K_2r^4 + \ldots) \\
&+ \left(P_1(r^2 + 2y_u^2) + 2P_2 x_u y_u\right)
(1 + P_3 r^2 + P_4 r^4 + \ldots)
\end{align}\end{split}\]
where:
- \(x_u + j y_u\) is the undistorted complex position,
- \(x_d + j y_d\) is the distorted complex position,
- \(r^2 = (x_u - x_0)^2 + (y_u - y_0)^2\)
- \(x_0 + j y_0\) is the complex center of distortion.
The K-coefficients (resp. P-coefficients) model the radial (resp. tangential) distortion.
Reference: Optical distortion
Radial distortions¶
In [3]:

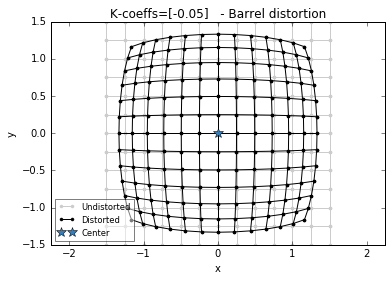

barrel = GeometricDistortion(Kcoeffs=[-0.05])
print(barrel)
ax = barrel.plot()
ax.set_title(ax.get_title() + " - Barrel distortion");
Geometric distortion: center=(+0, +0), K-coeffs=[-0.05], P-coeffs=[]
In [4]:
xyu = 1. + 1j
xyd = barrel.forward(xyu)
try:
assert(N.isclose(xyu, barrel.backward(xyd)))
except RuntimeError:
print("Distortion is not invertible.")
except AssertionError:
print("Distortion inversion is invalid.")
else:
print("Distortion inversion is OK.")
Distortion inversion is OK.
In [5]:

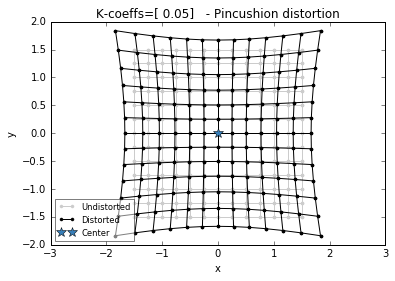

cushion = GeometricDistortion(Kcoeffs=[+0.05])
print(cushion)
ax = cushion.plot()
ax.set_title(ax.get_title() + " - Pincushion distortion");
Geometric distortion: center=(+0, +0), K-coeffs=[ 0.05], P-coeffs=[]
In [6]:
moustache = GeometricDistortion(Kcoeffs=[-0.07, +0.01])
print(moustache)
ax = moustache.plot()
ax.set_title(ax.get_title() + " - Moustache distortion");
Geometric distortion: center=(+0, +0), K-coeffs=[-0.07 0.01], P-coeffs=[]
Tangential distortions¶
First two P-coefficients will correspond to a purely tangential distortion, while higher order cofficients will introduce radial dependencies.
In [8]:

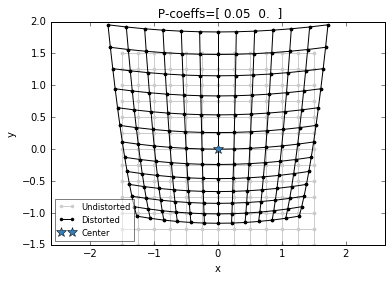

td1 = GeometricDistortion(Pcoeffs=[+0.05, 0])
print(td1)
ax = td1.plot()
Geometric distortion: center=(+0, +0), K-coeffs=[], P-coeffs=[ 0.05 0. ]
In [9]:

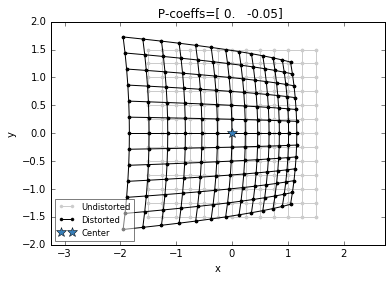

td2 = GeometricDistortion(Pcoeffs=[0, -0.05])
print(td2)
ax = td2.plot()
Geometric distortion: center=(+0, +0), K-coeffs=[], P-coeffs=[ 0. -0.05]
In [10]:

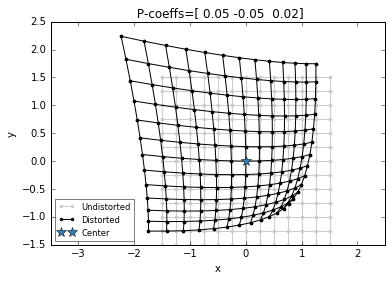

td3 = GeometricDistortion(Pcoeffs=[0.05, -0.05, 0.02])
print(td3)
ax = td3.plot()
Geometric distortion: center=(+0, +0), K-coeffs=[], P-coeffs=[ 0.05 -0.05 0.02]

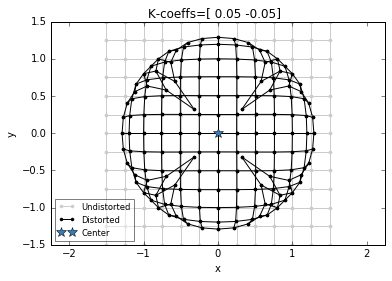

Beware that some coefficient sets correspond to strong locally non-invertible distortions:
In [11]:
td4 = GeometricDistortion(Kcoeffs=[0.05, -0.05])
print(td4)
ax = td4.plot()
Geometric distortion: center=(+0, +0), K-coeffs=[ 0.05 -0.05], P-coeffs=[]
In [12]:
xyu = 1.5 - 1.5j
print "Before distortion:", xyu
xyd = td4.forward(xyu)
print "After distortion:", xyd
try:
xyb = td4.backward(xyd)
assert(N.isclose(xyu, xyb))
except RuntimeError:
print("Distortion is not invertible.")
except AssertionError:
print("Distortion inversion is invalid: {} vs. {}.".format(xyb, xyu))
else:
print "After inversion:", xyb
print("Distortion inversion is OK.")
Before distortion: (1.5-1.5j)
After distortion: (0.31875-0.31875j)
Distortion inversion is invalid: (0.316220326657-0.316220326657j) vs. (1.5-1.5j).
